underwater cleaning for hull, seabed oil pipeline, aquaculture cage, offshore platform, and underwater cultural relics, etc.; able to drive two cavitation cleaning guns,
or drive cavitation cleaning plate and polishing and grinding disc to work at the same time for large-area cleaning, eliminating the attached sea creatures like barnacles
and sea shells, no harm to the original protective painting of the equipment. Safe, efficient and environmentally friendly.
Parameters:
Model | JR-CVPS90(D) | Power | 122 HP | Energy | Diesel |
Max Pressure | 21 MPa | Max Flow | 215 LPM | Material | Stainless |
Size | 190*150*180 cm | Weight | 1800 kg | Frame | Steel |
Movement | Lift | Drive | Coupling | Cooling | Water |
Cleaningrate | 400-1200㎡/h | Medium | Seawater |

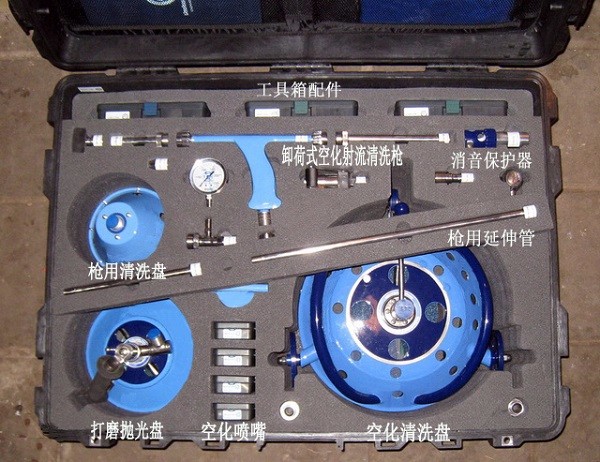

Match | Cavitation gun*8/2N Cavitation gun*4/Cavitation gun&plate*4/Cavitation polisher*4/Cavitation plate*4 |
Parameters:
Model | JR-CVPS90(E) | Power | 90 kW | Energy | Electricity |
Max Pressure | 21 MPa | Max Flow | 215 LPM | Material | Stainless |
Size | 190*150*180 cm | Weight | 1400 kg | Frame | Steel |
Movement | Lift | Drive | Coupling | Cooling | Water |
Cleaningrate | 400-1200㎡/h | Medium | Seawater |
Match | Cavitation gun*8/2N Cavitation gun*4/Cavitation gun&plate*4/Cavitation polisher*4/Cavitation plate*4 |
